General SurgiLock® Positioning Kit
Learn more about The General SurgiLock® Positioning Kit
BaCK TO FOAM MENU
SurgiLock® Positioning Foam is coated with our patented ElasTak® adhesive polymer technology to provide an aggressive tack for securing patients. It is imperative that patients and/or patients’ limbs don’t move during surgical procedures. Unwanted movement can cause injury and other negative outcomes to the patient and undue stress to the patient and staff.
Our patented Elastak® adhesive polymer is soy based, environmentally friendly, and made in the USA.
SurgiLock® General Surgical
Positioning Kit
Made with biodegradable foam
IFU_SLF_SHTPSP_REVB
Content: 1- 20’’ x 24’’ Torso Pad, 1- Standard Head Positioner, 1- 59’’ Strap Pad
Content: 1- 20’’ x 24’’ Torso Pad,
1- Standard Head Positioner,
1- 59’’ Strap Pad
Content: 1- 20’’ x 24’’ Torso Pad, 1- Standard Head Positioner, 1- 59’’ Strap Pad

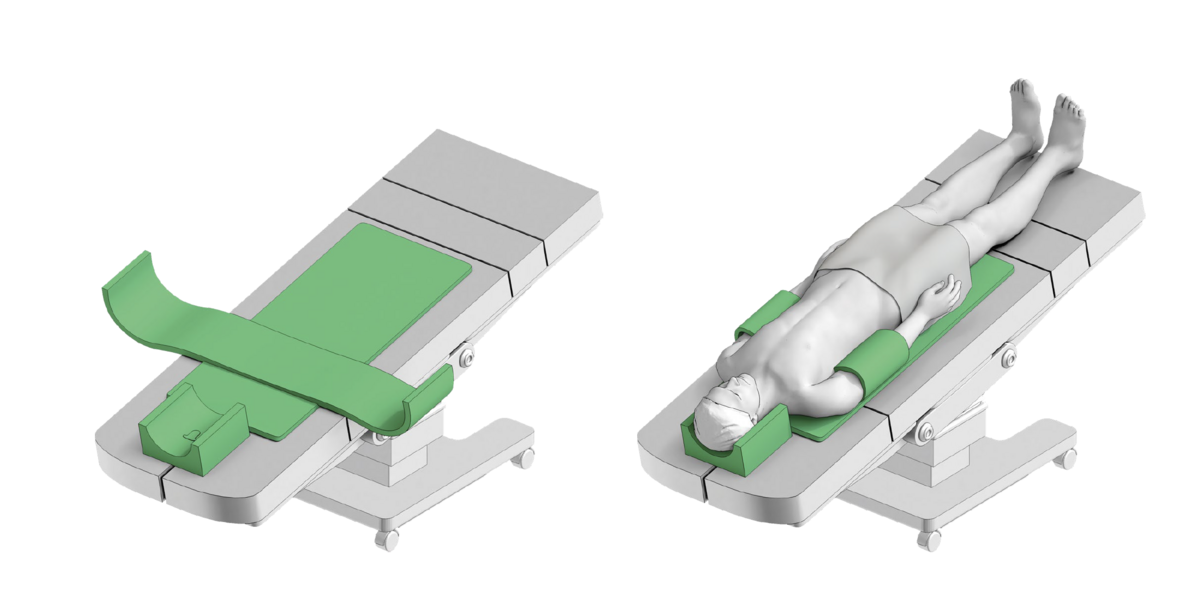

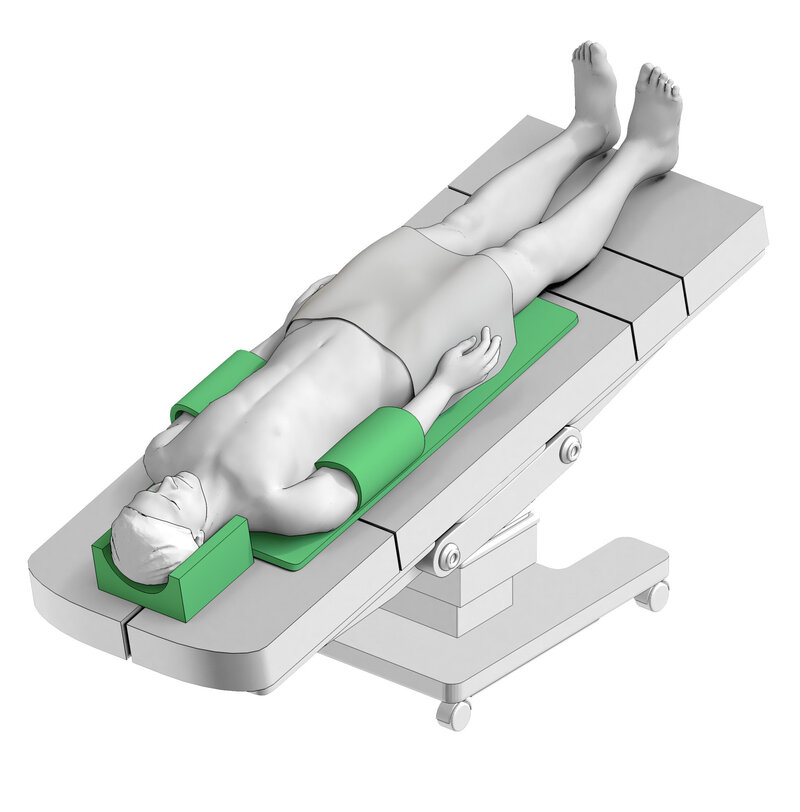

1. Open the package and allow SurgiLock® positioning foam to expand.
2. Place the Head positioner.
A. Remove and discard the release liner from the Standard Head Positioner by pinchingthe corner of the foam, grasping the release liner, and pulling it off.
B. Place the Standard Head positioner directly onto the surgical bed in the desired position following the facility protocols and anesthesiologist preference.
3. Place the Torso Pad.
A. Remove and discard the release liner from both sides by pinching the corner of the foam, grasping the release liner, and pulling it off.
B. Place SurgiLock® biodegradable positioning foam at the very edge of the middle table segment nearest the perineal cutout, positioning the SurgiLock® foam centered and indirect contact with the surface of the table pad.
Important: DO NOT leave any table covers,linens, other transfer devices or materials between SurgiLock® Foam and surface of the surgical table. SurgiLock® pad must contact the surface of the table pad. Elastak® soy-based elastomer should be in direct contact with patient’s skin, Follow all facility safetyprotocols.
C. Transfer of patient to and from SurgiLock® Foam. When transferring patient via lift sheet onto SurgiLock® Foam on surgical table, follow facility protocols. Turn patient on his/her side. Move sheet to center of table, rotate patient back on opposite side remove sheet, place patient directly on SurgiLock® Foam so it has direct contact with patient skin. Always adhere to facility safety protocols for transfer of patients.
D. SurgiLock® Torso Pad is designed to be in direct contact with patient skin.
4. Place 59” Strap Pad
A. Remove and discard the release liner from both sides of the pad by pinching the corner of the foam, grasping the release liner, and pulling it off.
B. Place the pad in the desired location on surgical table or patient.
C. SurgiLock® Foam pad can be used on top (chest) of patient or placed directly on surface of the 20” x 24” Torso Pad – Discretion of the surgical team.
SurgiLock® Foam is Designed to:
SurgiLock® Foam Helps Secure a patient in a wide variety of surgeries with our patented ElasTak® coating which holds the patient and/or patients’ limbs in place.
SurgiLock® Helps Secure a patient in a wide variety of surgeries with our patented ElasTak® coating which holds the patient and/or patients’ limbs in place.
Easily position a patient on any surgical table
Easily position a patient on any surgical table
Reduce set up prep time and eliminate the need to reposition
Reduce set up prep time and eliminate the need to reposition
Reduce Injury and liability
Reduce Injury and liability
Using our SurgiLock® Positioning Foam can drastically reduce set up prep time and eliminate the need to reposition patients that have slid on the operating table.
Using our SurgiLock® Positioning Foam can drastically reduce set up prep time and eliminate the need to reposition patients that have slid on the operating table.
Current positioning foam does not effectively secure patients and/or patients’ limbs as well as required during surgical procedures. When patients slide on the operating table there can be injury to the patient and additional liability to the surgical team and healthcare facility.
Current positioning foam does not effectively secure patients and/or patients’ limbs as well as required during surgical procedures. When patients slide on the operating table there can be injury to the patient and additional liability to the surgical team and healthcare facility.
- Bio Degradable Foam coated with our non-slip patented ElasTak® polymer locking the foam in place.
- Our patented ElasTak® adhesive polymer technology is non-toxic, environmentally friendly, green based and made in the USA. It is made from soybeans.
- Latex Free
- Made for contact with skin
- Designed for Medical and Surgical Use
- Pressure relieving Foam
- Designed for single use
- Foam is designed for re-distribution of pressure
- Chemically Inert Foam with our patented ElasTak® coating.
- Releases cleanly from both patient and equipment leaving no residue.
- Designed with soft supportive open cells for patient safety and comfort.
- Bio Degradable Foam coated with our Non-Slip patented ElasTak® polymer locking the foam in place.
- Our patented ElasTak® adhesive polymer technology is non-toxic, environmentally friendly, green based and made in the USA. It is made from soybeans.
- Latex Free
- Made for Contact with Skin
- Designed for Medical and Surgical Use
- Pressure relieving Foam
- Designed for Single Use
- Foam is designed for re-distribution of pressure
- Chemically Inert Foam with our patented ElasTak® coating.
- Releases cleanly from both patient and equipment leaving no residue.
- Designed with soft supportive open cells for patient safety and comfort.
